LOAD BREAK SWITCHES
Home
LOAD BREAK SWITCHES
FEATURES :
Self developed air blast arc quenching technology.
Viewing window to analyze contact position.
Tripping arrangements : Remote trip, Manual, Shunt coil & Fuse trip arrangement.
Space heater with thermostat.
Indicating Lamps & illumination Lamp.
Available in both Indoor and Outdoor version.
INTERLOCKS:
Access to the HT HRC Fuse chamber is possible only after switching OFF the main switch.
The inner door will not be able to open when Main switch is in ON condition.
The main switch and the earth switch are mechanically interlocked such that the earth
Switch can be switched ON only after main switch has been switched OFF & vice versa.
ADVANTAGES
Safe due to direct access to live parts is not possible.
Used in RMU with Multi panel configuration.
Main switch & Earth switch are mechanically interlocked.
Easy to access the Fuse in HT Fuse Chamber.
Easily repairable on site.
Completely door closed operation for operator safety.
Reliable & Robust Mechanism.

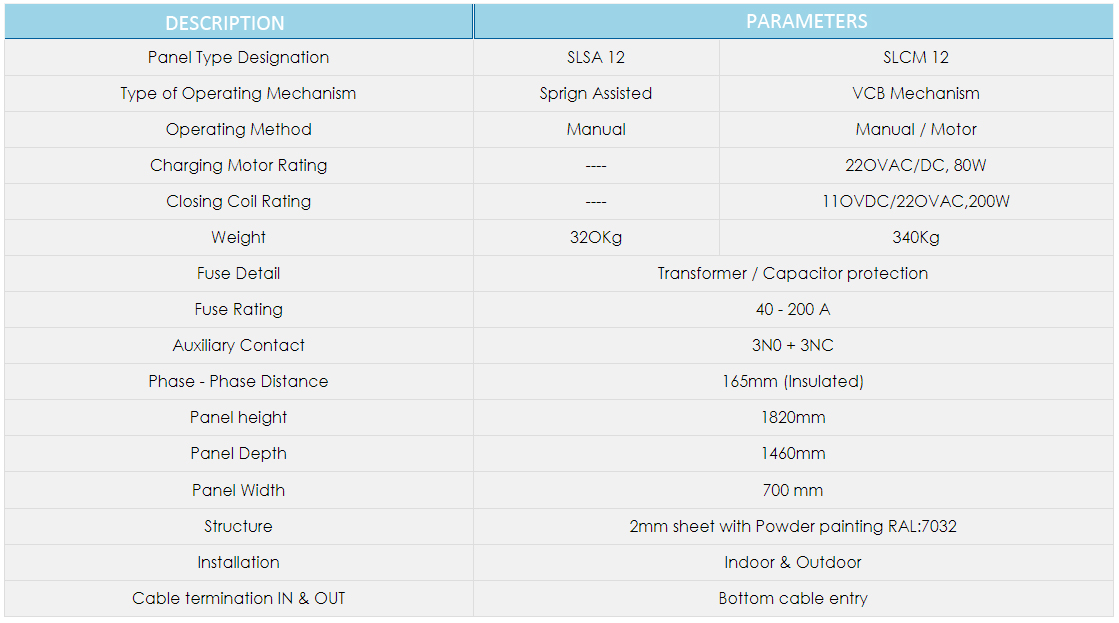

DESIGN SPECIFICATION

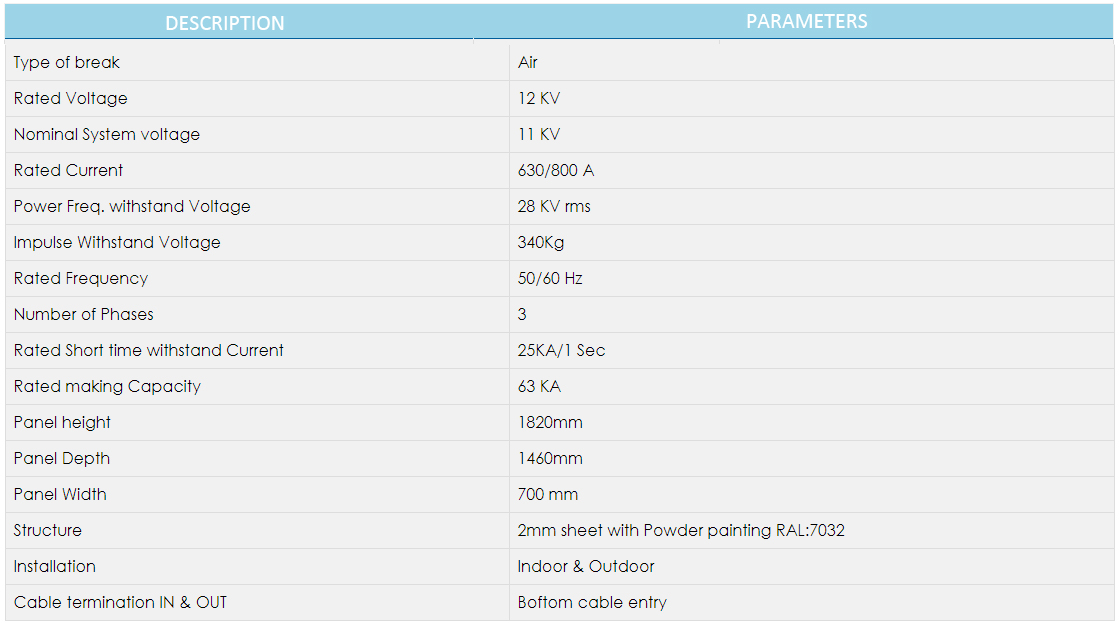

TECHNICAL SPECIFICATION

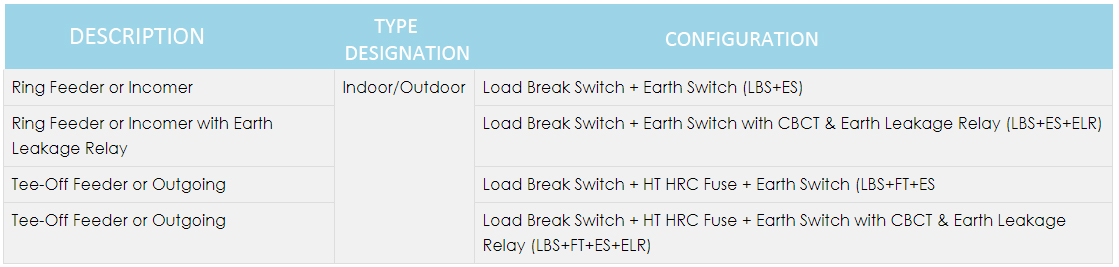

AVAILABLE COMBINATIONS:
